- BC
- description

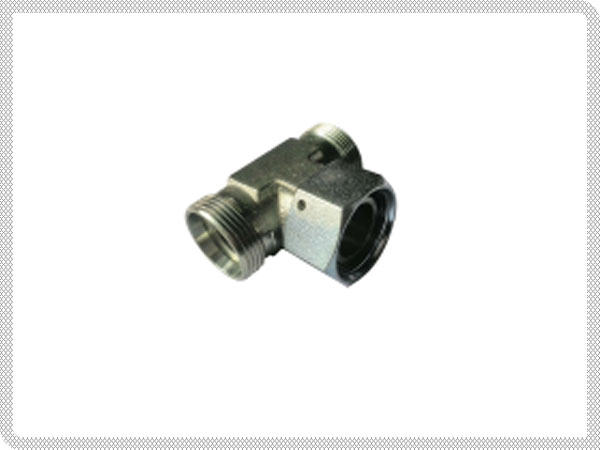

- Product Image
- Feedback
代 号
PART NO.
螺 纹 THREAD
管子外径 TUBE O.D.
尺 寸 DIMENSIONS
压力等级
MPa
E,G
F
D1,D3
D2
l1,l3
L1,L3
L2
S1
S2,S4
S3
BC-12
M12X1.5
M12X1.5
6
6
12
27
26
12
14
14
31.5 轻系列 L
BC-14
M14X1.5
M14X1.5
8
8
14
29
27.5
12
17
17
BC-16
M16X1.5
M16X1.5
10
10
15
30
29
14
19
19
BC-18
M18X1.5
M18X1.5
12
12
17
32
29.5
17
22
22
BC-22
M22X1.5
M22X1.5
15
15
21
36
32.5
19
27
27
BC-26
M26X1.5
M26X1.5
18
18
23.5
40
35.5
24
32
32
BC-30
M30X2
M30X2
22
22
27.5
44
38.5
27
36
36
16
轻系列 L
BC-36
M36X2
M36X2
28
28
30.5
47
41.5
36
41
41
BC-45
M45X2
M45X2
35
35
34.5
56
51
41
50
50
BC-52
M52X2
M52X2
42
42
40
63
56
50
60
60
BD-14
M14X1.5
M14X1.5
6
6
16
31
27
12
17
17
63 重系列 S
BD-16
M16X1.5
M16X1.5
8
8
17
32
27.5
14
19
19
BD-18
M18X1.5
M18X1.5
10
10
17.5
34
30
17
22
22
BD-20
M20X1.5
M20X1.5
12
12
21.5
38
31
17
24
24
BD-22
M22X1.5
M22X1.5
14
14
22
40
35
19
27
27
BD-24
M24X1.5
M24X1.5
16
16
24.5
43
36.5
24
30
30
40 重系列 S
BD-30
M30X2
M30X2
20
20
26.5
48
44.5
27
36
36
BD-36
M36X2
M36X2
25
25
30
54
50
36
46
46
BD-42
M42X2
M42X2
30
30
35.5
62
55
41
50
50
BD-52
M52X2
M52X2
38
38
41
72
63
50
60
60
31.5 重系列 S
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”, 如 BC-30RN。
Note：In case if you are interested to order the adapter in complete set with cutting ring
and nut ,it is necessary to insert suffix "RN" after our part no.，for example BC-30RN.
