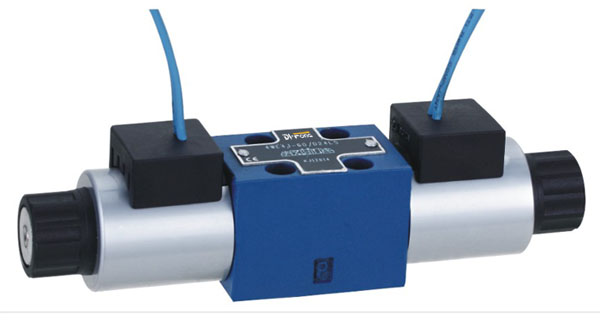

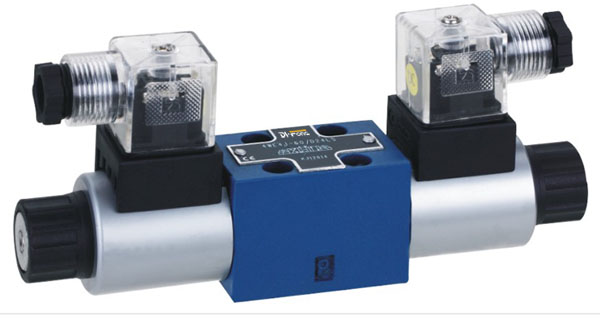

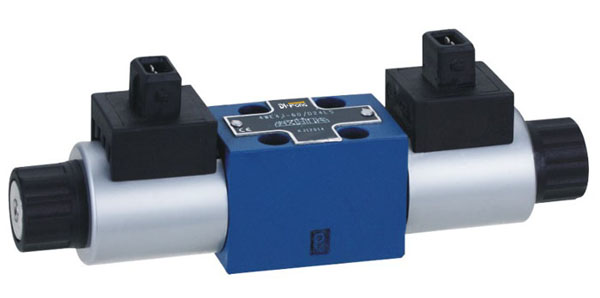

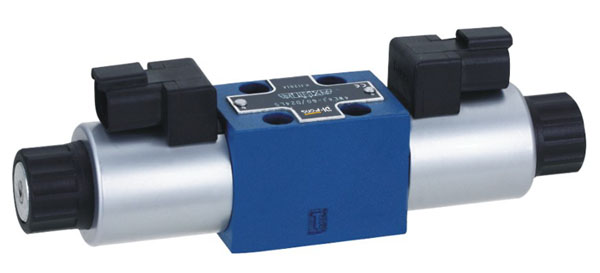

- Rexroth 4WE4 type 61 series solenoid directional valve. DIN type, deutsch type, AMP Junior-Timer type and double lead wires type socket
- description
- Product Image
- Feedback
General Data
The total weight of solenoid （with two solenoids）
㎏
0.89
The total weight of solenoid （with one solenoids）
㎏
0.72
Installation site
Optional position
Operating temperature
℃
-20~+50(adopt NBR seal ring )
Hydraulic Data
Maximum working oil pressure P、A and B
MP a
31.5
The highest oil pressure T cavity can bear
MP a
18
Maximum flow
1/min
20
Liquid medium
Mineral hydraulic oil, Phosphate hydraulic oil
The oil temperature range
℃
-20~+80
The oil cleanliness
ISO4572:β10≥75NAS1638：Class 9
The oil viscosity
ISO-VG32（5420）cst
Electric Data
Voltage category
DC、RAC(coil with a rectifier component)
Working system
ED
100％
Allowed voltage fluctuation range
％
-10~+10
The reserving and reset time
ms
On50…90 off40…80（do not include RA type）
Maximum reversing rate
Hz
3
Coil insulation class
H
The maximum operating temperature coil allowed
℃
180
Coil weight
㎏
0.215
voltage
V
12
24
48
110
R110
R220
Power types
DC
DC
DC
DC
AC
AC
Power rate
Hz
--
--
--
--
50/60
50/60
Power consumption
W
26
26
26
26
29
29
Coil resistance（20℃）
ohm
2.18
1.10
0.50
0.26
0.33
0.17
Operating current（20℃）
A
5.5
22
89
413
89
413
