DG4V3 Type Solenoid Directional Valve

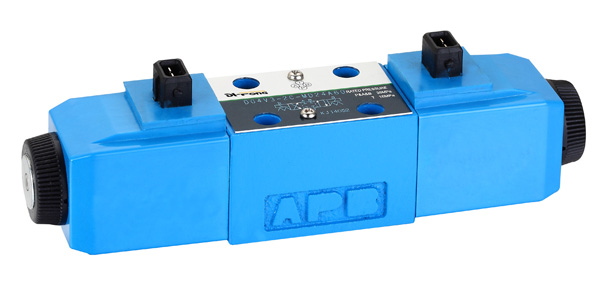

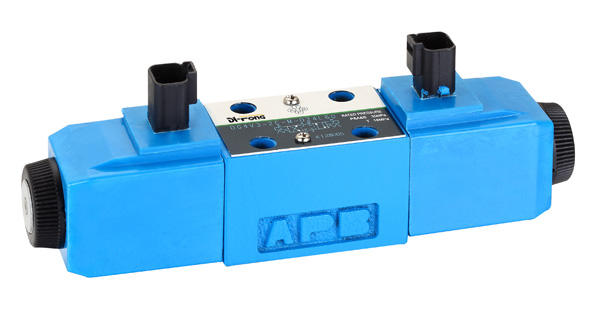

  • Vickers DG4V3 type solenoid directional valve, DIN, AMP Junior-timer, two leads and deutsch type

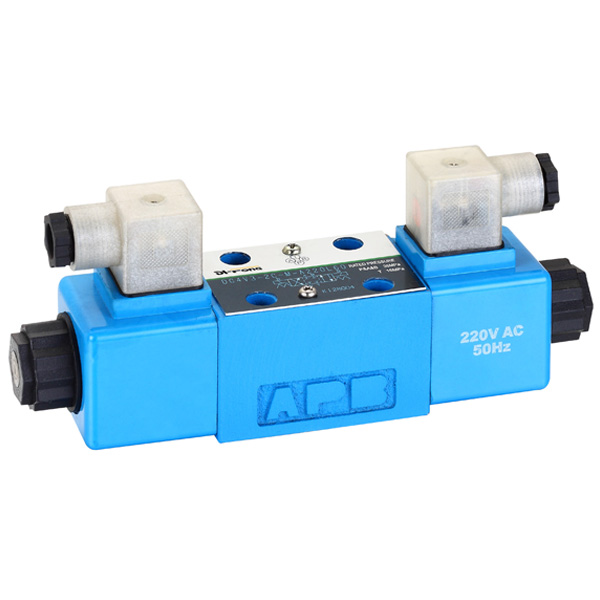

  • Product picture.jpg

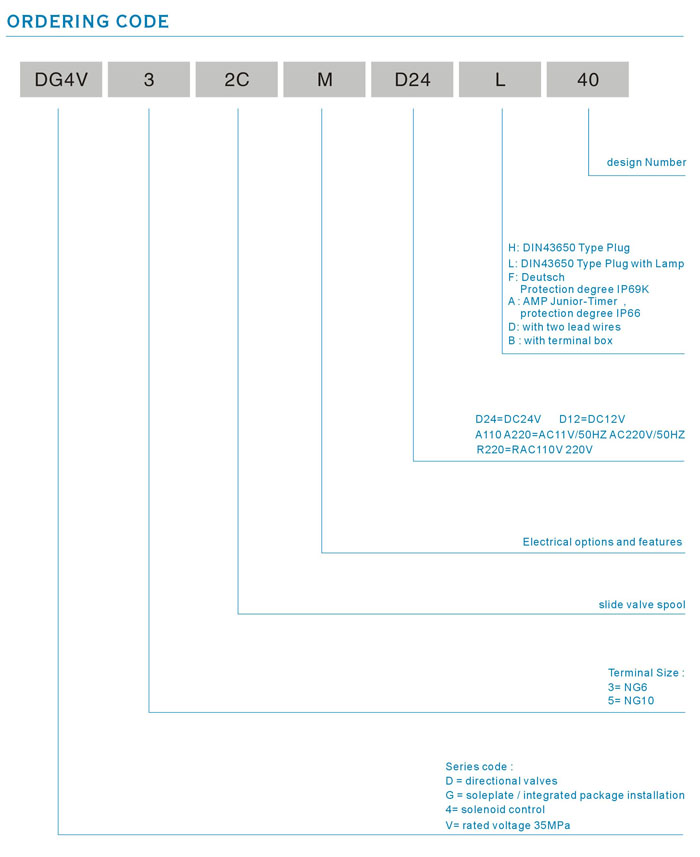

    Ordering details.jpg

    DG4V 700x 英文.jpgTechnical data.jpg

    General Data

    The total weight of one solenoid valve(with two solenoids)

    ㎏

    2.30

    The total weight of one solenoid valve (with one solenoid)

    ㎏

    1.69

    The total weight of one solenoid valve(with two solenoids)


    Optional position

    The total weight of one solenoid valve (with one solenoid)

    ℃

    -20~+50(adopt NBR seal   ring )

    Hydraulic Data

    Maximum working oil pressure

    Oil port P、A and B

    MP a

    35

    The highest dynamic oil pressure T cavity can bear

    MP a

    15.5

    The highest static oil pressure T cavity can bear

    MP a

    21

    Rated flow

    1/min

    38

    Maximum flow

    1/min

    50

    Liquid medium


    Mineral hydraulic oil, Phosphate hydraulic oil

    The oil temperature range

    ℃

    -20~+80

    The oil cleanliness


    ISO4572:β10≥75NAS1638:Class 9


    Electrical Data

    Voltage category


    DC、RAC(coil with a   rectifier component)

    Duty cycle

    ED

    100%

     voltage allowable fluctuation range

    %

    -10~+10

    The reserving and   resetting time

    ms

    On120  off100(do not include RAC type)

    Maximum operating   frequency

    Hz

    3

    Coil insulation class


    H

    The maximum operating   temperature coil allowed

    ℃

    180

    Coil weight

    ㎏

    0.35

    voltage

    V

    12

    24

    48

    110

    R110

    R220

    Power types


    DC

    DC

    DC

    DC

    RC

    RC

    Power frequency

    Hz





    50/60

    50/60

    Power consumption

    W

    30

    30

    30

    30

    32

    32

    Coil resistance(20℃)

    ohm

    4.8

    19.2

    76.8

    403

    75.2

    313

    Operating current(20℃)

    A

    2.5

    1.25

    0.63

    0.27

    0.38

    0.19

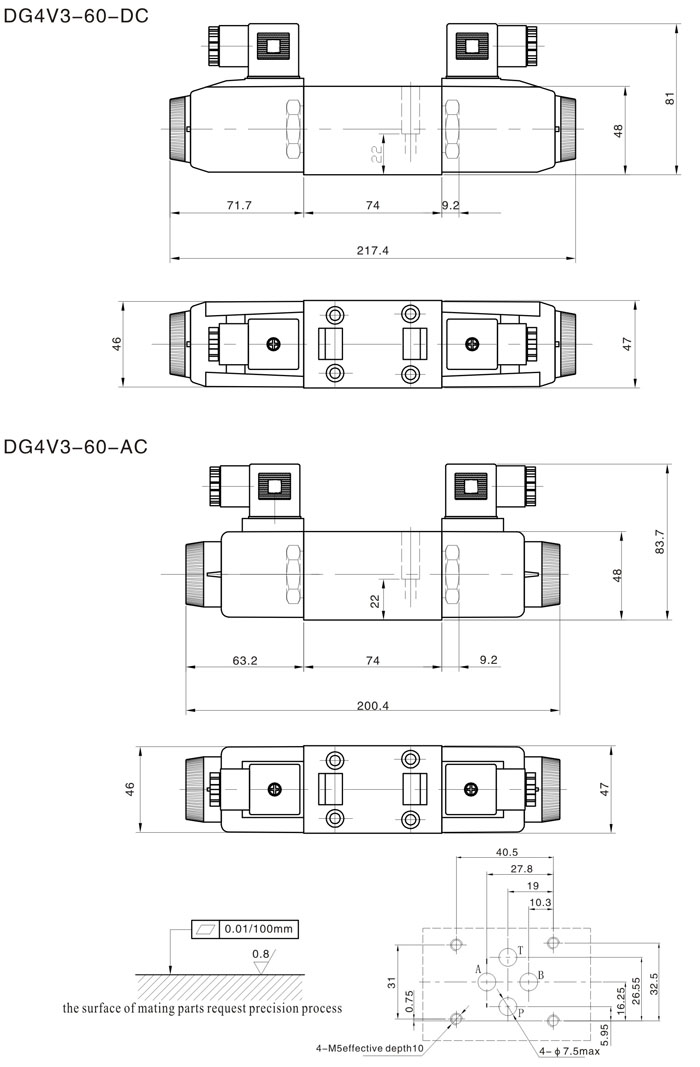

    Unit dimension.jpg


    DG4V3-60-DC.700 dimension.jpg


  •
