- Yuken DSG03 type solenoid directional valve, DIN, AMP Junior-timer, two leads and deutsch type
- description

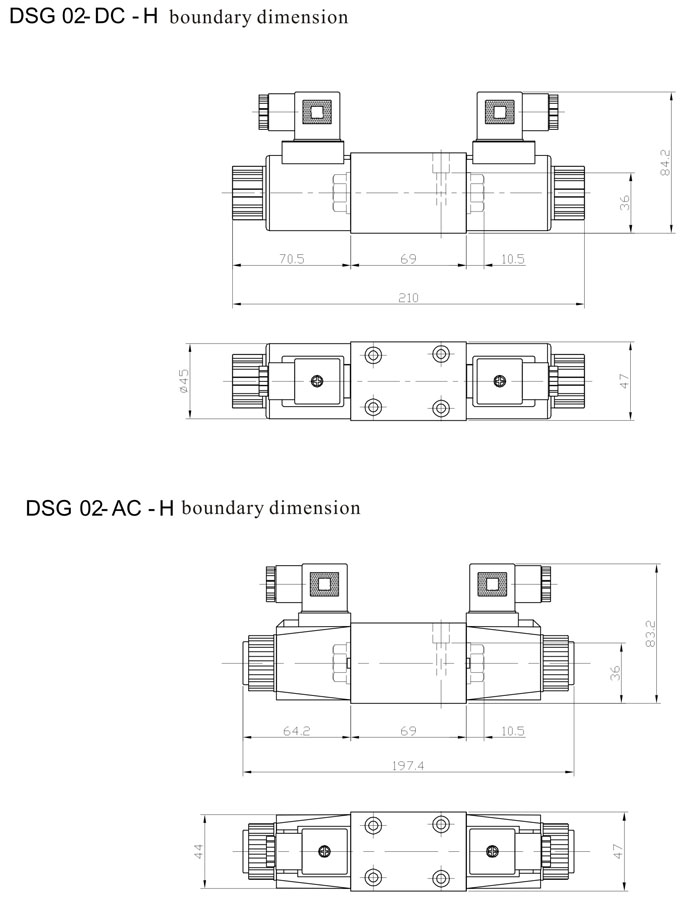

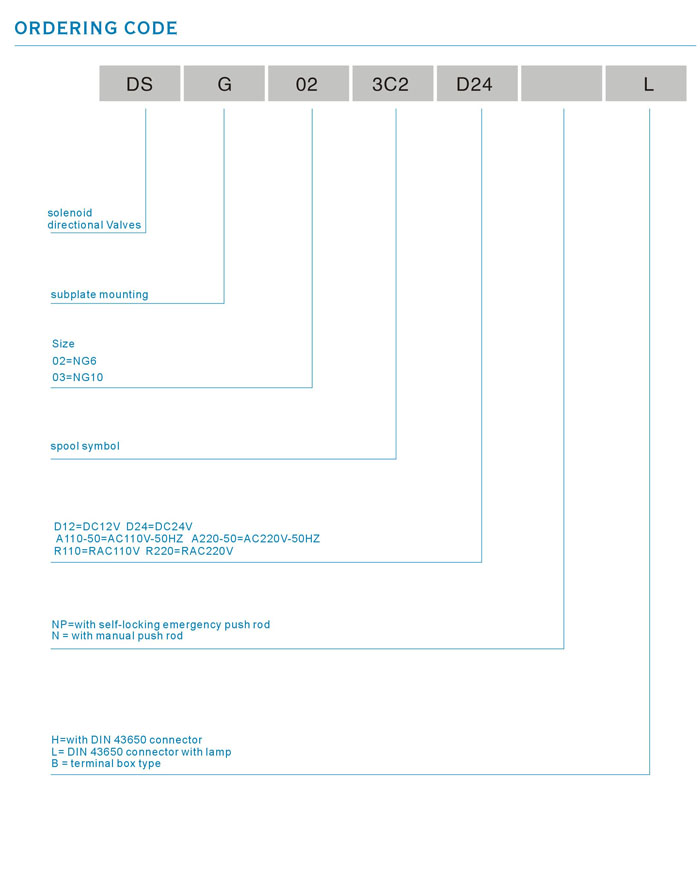

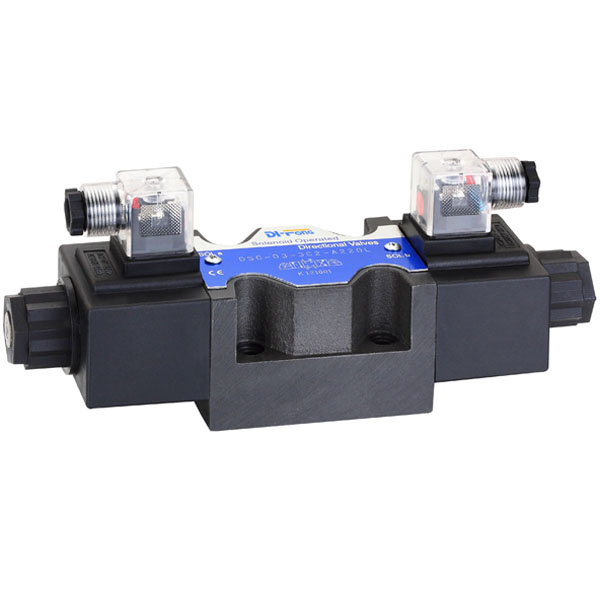

- Product Image
- Feedback
[Technical Data]
General Data
The total weight of one solenoid valve（with two solenoids）
㎏
4.8
The total weight of one solenoid valve （with one solenoid）
㎏
3.5
Installation site
Optional position
Operating temperature
℃
-20~+50(adopt NBR seal ring )
Hydraulic Data
Maximum working oil pressure
Oil port P、A and B
MP a
31.5
The highest dynamic oil pressure T cavity can bear
MP a
16
The highest static oil pressure T cavity can bear
MP a
63
Maximum flow
1/min
120
Liquid medium
Mineral hydraulic oil, Phosphate hydraulic oil
The oil temperature range
℃
-20~+80
The oil cleanliness
ISO4572:β10≥75NAS1638：Class 9
Electrical Data
Voltage category
DC、RAC(coil with a rectifier component)
Duty cycle
ED
100％
Allowed voltage fluctuation range
％
-10~+10
The reserving and reset time
ms
On50 off80（do not include RAC type）
Maximum reversing rate
Hz
3
Coil insulation class
B
The maximum operating temperature coil allowed
℃
130
Coil weight
㎏
0.82
voltage
V
12
24
110
110
220
Power types
DC
DC
DC
RAC
RAC
Power rate
Hz
50/60
50/60
Power consumption
W
46
46
46
54
54
Coil resistance（20℃）
ohm
3.2
12.5
1050
49
196
Operating current（20℃）
A
3.75
1.92
0.21
0.56
0.28
