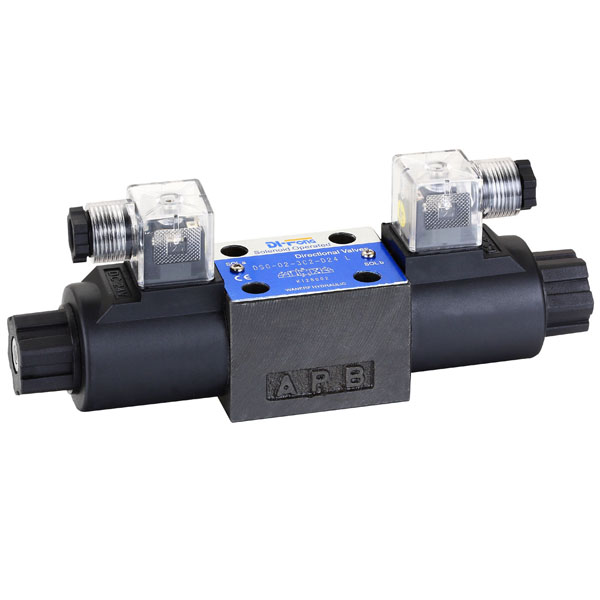

- Yuken DSG02 type solenoid directional valve, DIN, AMP Junior-timer, two leads and deutsch type socket
- description
- Product Image
- Feedback
General Data
The total weight of one solenoid valve（with two solenoids）
㎏
1.94
The total weight of one solenoid valve （with one solenoid）
㎏
1.50
Installation site
Optional position
Operating temperature
℃
-20~+50(adopt NBR seal ring )
Hydraulic Data
Maximum working oil pressure P、A and B
MP a
31.5
The highest dynamic oil pressure T cavity can bear
MP a
16
The highest static oil pressure T cavity can bear
MP a
20
Rated flow
1/min
63
Maximum flow
1/min
120
Liquid medium
Mineral hydraulic oil, Phosphate hydraulic oil
The oil temperature range
℃
-20~+80
The oil cleanliness
ISO4572:β10≥75NAS1638：
Class 9
Electrical Data
Voltage category
DC、RAC(coil with a rectifier component)
Duty cycle
ED
100％
Allowed voltage fluctuation range
％
-10~+10
The reserving and reset time
ms
On50 off40（do not include RAC type）
Maximum reversing rate
Hz
3
Coil insulation class
B
The maximum operating temperature coil allowed
℃
130
Coil weight
㎏
0.30
voltage
V
12
24
110
110
220
Power types
DC
DC
DC
RAC
RAC
Power frequency
Hz
50/60
50/60
Power consumption
W
34
34
34
36
36
Coil resistance（20℃）
ohm
4.2
16.5
346
64.6
258
Operating current（20℃）
A
2.8
1.45
0.31
0.42
0.21
